Description
Technical details
| BOX CONTENTS | |
|---|---|

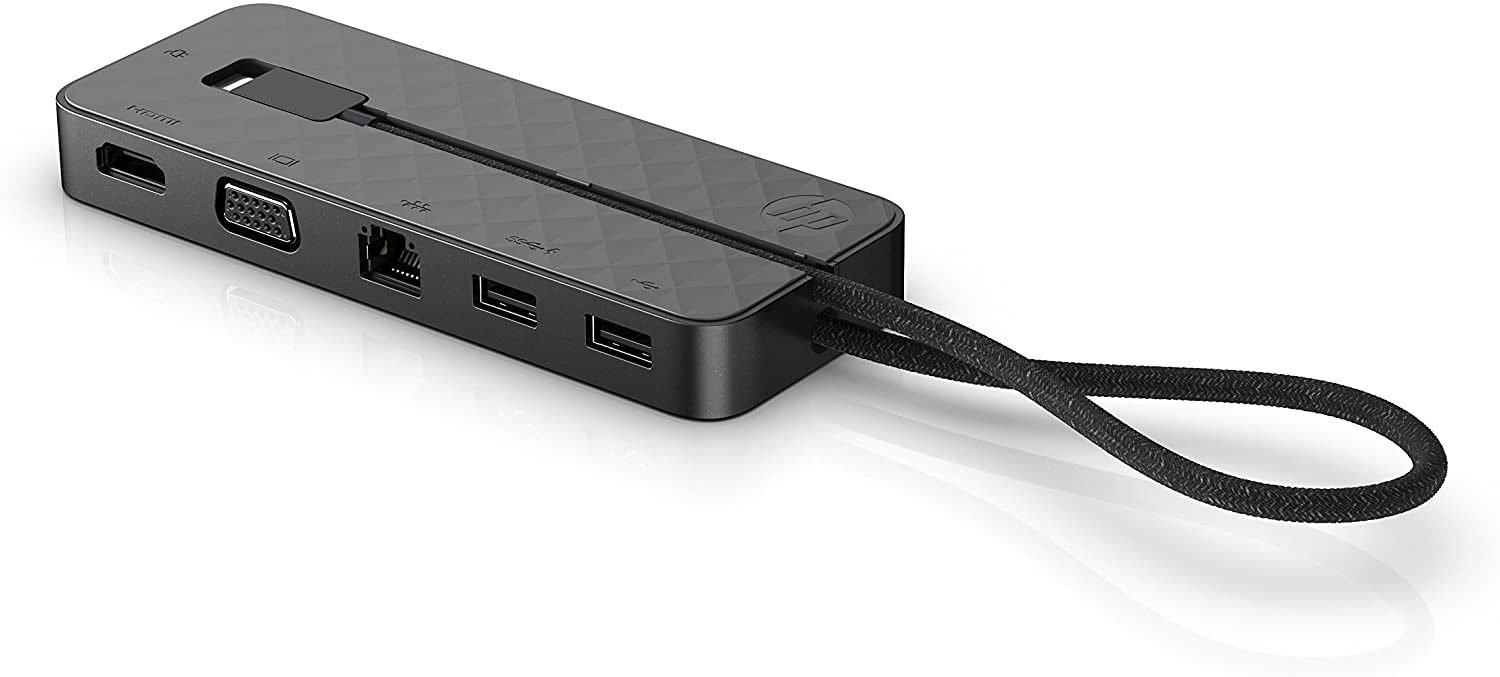

| What’s in the box | HP Spectre USB-C™ Travel Dock Quick Start guide Product notices Warranty card |
| WEIGHTS | |
| Weight | 0.13 kg |
| Package weight | 0.28 kg |
| SYSTEM FEATURES | |
| Technical notes | USB 3.0 Type-C UFP: Supports SS (5 Gbps), and are backward-compatible with HS (480 Mbps), FS (12 Mbps), and LS (1.5 Mbps) Supports Type-C Alt Mode w/ PD 3.0 Provides power up to 20V/3A USB 3.0 Type-A: Supports SS (5 Gbps), and are backward-compatible with HS (480 Mbps), FS (12 Mbps), and LS (1.5 Mbps) Provides power up to 5V/900mA USB 2.0 Type-A: Supports HS (480 Mbps), and are backward-compatible with, FS (12 Mbps), and LS (1.5 Mbps) Provides power up to 5V/500mA USB 3.0 Type-C DFP: Sink power only, input from HP AC adapter Supports PD 3.0 HDMI: HDMI 1.4 data rate 10.2Gbps, DisplayPort 1.4 up to 5.4Gbps/lane, Supports display resolution up to 4096 x 2160 at 30Hz frame rate, Supports RGB up to 10 bpc, YCbCr4:4:4, 4:2:2 and 4:2:0 up to 12 bpc, Supports content protection formats HDCP 1.4 and HDCP 2.2 VGA: DisplayPort 1.2 up to 5.4Gbps/lane link rate, Supports display resolution up to 1920 x 1080 at 60Hz frame rate, Supports RGB up to 8 bpc Ethernet: USB 3.0 data rate up to 5 Gbps, The transfer rate of Ethernet port is 10/100/1000 Mbps, Supports Wake-On-LAN from S3/S4/S5 states, Supports Host Base MAC Address (HP’s HBMA) |
| SYSTEM REQUIREMENTS | |
| Minimum System Requirements | HP Spectre laptop Thunderbolt or USB Type-C™ Gen 1 port DisplayPort 1.2 + sleep and charge AC adapter of 65W or less |
| DIMENSIONS | |
| Minimum dimensions (W x D x H) | 14.48 x 5.48 x 1.65 cm |
| Package dimensions (W x D x H) | 24.7 x 11.1 x 3.6 cm |
| WARRANTY | |
| Warranty | Peace-of-mind coverage: Rest easy with an HP standard two-year limited warranty. |
